Liebert® ITA2TM adalah konversi ganda yang sepenuhnya digital, sangat andal Solusi UPS yang memberikan daya bersih dan konsisten. Solusi yang sangat efisien ini ideal untuk berbagai penerapan, baik itu rak IT, lemari jaringan, sistem kontrol otomasi, dan instrumen presisi untuk ruang kontrol berukuran kecil aplikasi tepi.

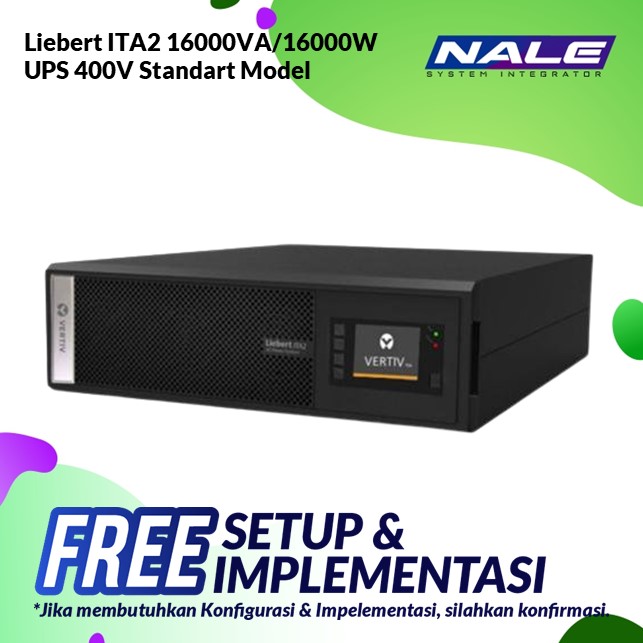

Vertiv Liebert ITA2 16000VA/16000KW UPS 400V Standart Model (1201751)
Rp118.006.875
- Capacity: 16000VA/16000W
- Backup time 7.5 minutes
- LCD standard model (no battery)
- 3U Rackmount
- 3×1/3×3 phase
- exclude material and instalation
Deskripsi
Deskripsi Vertiv Liebert ITA2 16000VA/16000KW UPS 400V Standart Model (1201751)
Battery Backup Table
| Model | Model Number |
Backup Time |
|||||||||
| 16kVA | 14.4kVA | 12.8kVA | 11.2kVA | 9.6kVA | 8kVA | 6.4kVA | 4.8kVA | 3.2kVA | 1.6kVA | ||
| 16K VA | 4 | 7.5 | 9.0 | 10.5 | 13.0 | 16.0 | 21.0 | 28.5 | 41.5 | 145.0 | 108.0 |
| 6 | 14.0 | 16.0 | 19.0 | 24.5 | 28.5 | 36.5 | 48.0 | 66.5 | 233.5 | 177.0 | |
| 8 | 21.0 | 24.5 | 28.5 | 34.0 | 41.5 | 52.0 | 67.0 | 92.0 | 322.0 | 246.5 | |
| 10 | 28.5 | 33.0 | 38.5 | 45.5 | 54.5 | 67.0 | 86.0 | 118.5 | 410.5 | 316.0 | |
| 12 | 35.5 | 41.5 | 48.0 | 56.0 | 67.0 | 82.0 | 105.0 | 148.5 | 498.5 | 386.0 | |
Spesifikasi singkat:
| Capacity | 16000VA/16000W |
| Nominal input voltage(V) | 380/400/415VAC 3-Phase,4Wire |
| Input voltage range(V) | 176-288VAC at full load; 100-176VAC at linear derating; 100VAC at half load |
| Nominal input frequency(Hz) | 50/60 |
| Input frequency range(Hz) | 40-70 |
| Input power factor(kW/kVA) | 0.99 |
| Current THD at full linear load(THDi%) | <5 |
| DC Bus Voltage | 288-480VDC |
| Battery Charger max. power (A) | = 5A (Standard model) |
| Battery Option | P/C : ITA-BCI0020K01 ( built-in battery module of 16 block X 12V X 9AH) |
| Nominal output voltage (V) | 220/230/240VAC (1-Phase),
380/400/415VAC (3-Phase) |
| Nominal output frequency (Hz) | 50/60 |
| Online mode efficiency | Up to 96.2% |
| ECO mode efficiency | Up to 99% |
Informasi Tambahan
| Brand |
Vertiv |
|---|
About brand
Vertiv, secara hukum Vertiv Holdings Co, adalah penyedia peralatan dan layanan yang berbasis di Amerika, Ohio, untuk pusat data, dengan portofolio solusi dan layanan infrastruktur daya, pendingin dan TI yang meluas dari cloud hingga edge jaringan.
