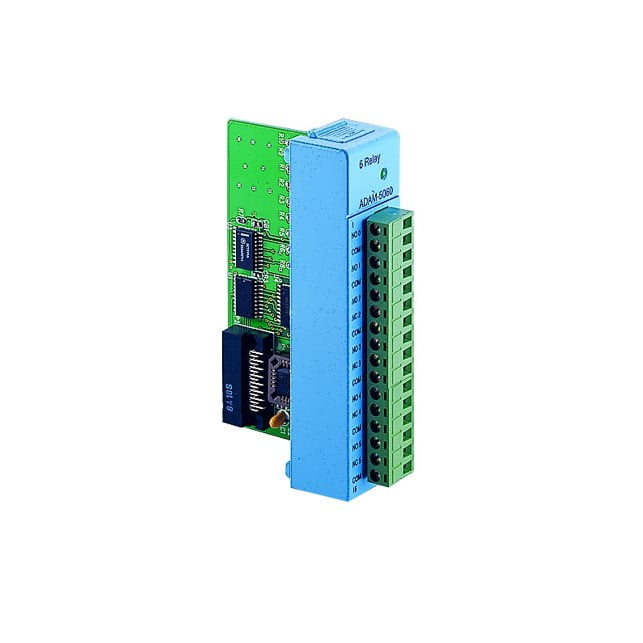

ADVANTECH ADAM-5060-AE 6-ch Relay Output Module
- Contact rating: AC: 125 V @ 0.6 A; 250 V @ 0.3 A
- Breakdown voltage: 500 VAC (50/60 Hz)
- Relay on time (typical): 3 msec.
- Relay off time (typical): 1 msec.
- Total switching time: 10 msec.
- Insulation resistance: 1000 MW minimum at 500 VDC
- Channels:2 x form A , 4 x form C
Deskripsi
SPECIFICATIONS
| Category | Attribute | Value |
| General | Connectors | 1 x 16-pin plug-in screw terminal |
| General | Humidity (Operating) | 5~95% RH (non-condensing) |
| General | Humidity (Storage) | 5~95% RH (non-condensing) |
| Hardware | Certification | CE, FCC class A |
| Relay Output | Channels | 2 Form A, 4 Form C |
| Relay Output | Contact Rating (Resistive) | 0.6 A @ 110 VDC, 2 A @ 30 VDC, 0.6 A @ 125 VAC, 0.3 A @ 250 VAC |
Datasheet
Informasi Tambahan
| Brand |
Advantech |
|---|
