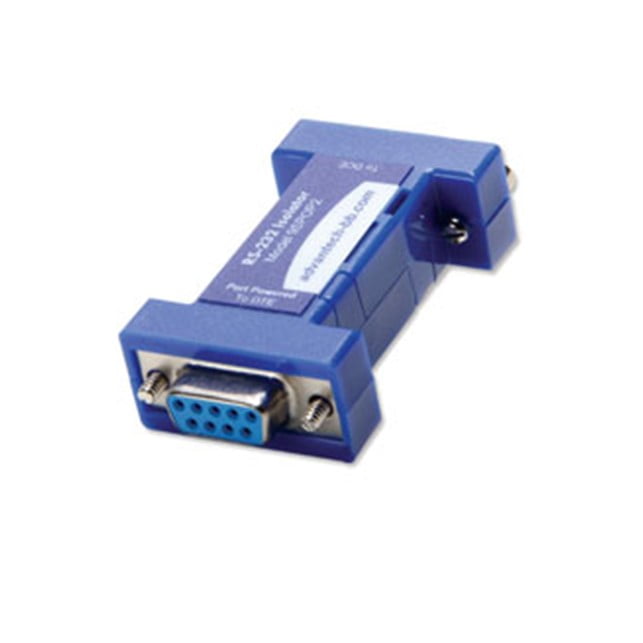

Advantech ULI-232DS – 9 PIN RS-232 Isolator, DB9 Male to DB9 Female, Port Powered (BB-9SPOP2)
- 2.5 KV Isolation
- Data rates up to 115.2 kbps
- DB9 F / DB9 M
- Port-powered on both sides, no external powersupply required
Deskripsi
| Category | Attribute | Value |
| General | Isolation | 2.5kV |
| General | Mounting | Inline |
| General | Power | Port Powered |
| General | Serial Type | RS-232 |
| General | Technology | Serial |
| General | Temperature | 0 to 70C |
| Power | Power Input (Serial) | Port-Powered from RS-232 |
| Protection | ESD Protection | 8 kV (Air) |
| Protection | Isolation | 2,000 VDC |
| Serial Communication | Maximum Serial Transmission Speed | 115.2 Kbps |
| Serial Communication | Serial Port Connector Type | DB9 |
| Serial Communication | Serial Port Number | 1 |
| Serial Communication | Serial Standard | RS-232 |
| Environment | Temperature (Operating Range) | 0 ~ 70°C (32 ~ 158°F) |
| Accessory General | Mounting | Inline |
Informasi Tambahan
| Brand |
Advantech |
|---|
