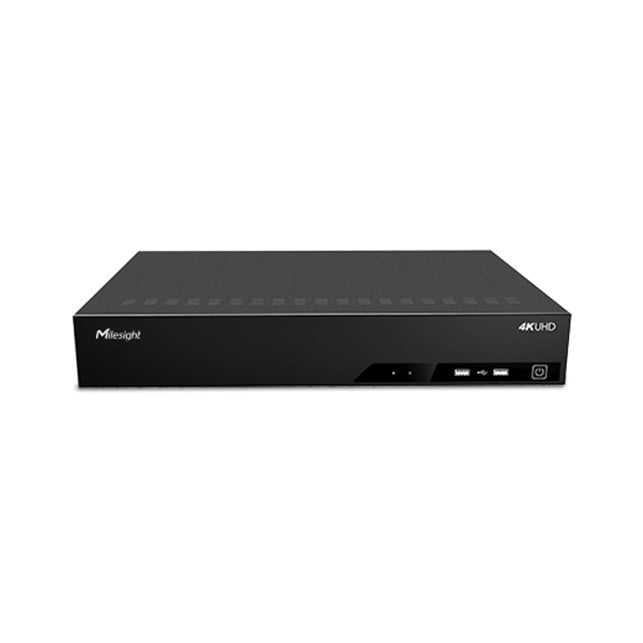

Milesight 32-CH NVR with 4K UHD Performance (MS-N7032-UH)
Rp11.818.170
Deskripsi
| Input | Network Video Input | 32-CH |
| Bandwidth Requirement | 256Mbps or 200Mbps(When RAID is enabled) (Incoming)256Mbps or 200Mbps(When RAID is enabled) (Outgoing) | |
| Output | HDMI Output | 1-CH, Resolution: 3840×2160/60Hz, 3840×2160/30Hz, 1920×1080/60Hz, 1920×1080/50Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz. (HDMI supports Audio Output) |
| VGA Output | 1-CH, Resolution: 1920×1080/60Hz, 1920×1080/50Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz. | |
| Dual Stream | Support | |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF | |
| Synchronous Playback | 4*(30fps @8MP), 5*(30fps@6MP), 6*(30fps@5MP), 8*(30fps @4MP), 10*(30fps @3MP), 16*(30fps @1080P), 32*(30fps @720P) | |
| Format | Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 |
| Audio Format | G.711/AAC/G.722/G.726 | |
| Storage | SATA | 4*SATA HDD (3.5”) |
| Capacity | Up to 10TB capacity for each HDD | |
| Disk Array | Array Type | RAID0, RAID1, RAID5, RAID6, RAID10 |
| Record | Recording Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Snapshot Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) | |
| Playback Type | General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback | |
| Backup | Video backup, Image Backup | |
| Network | Network Protocols | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS |
| Interface | Network Interface | 2*RJ45 10/100/1000Mbps |
| USB Interface | 1*USB 3.0; 2*USB 2.0 | |
| Serial Interface | 1*RS-485 Series Port for PTZ, 1*RS-232 Series Port for Console, 1*RS-485 Series Port for Keyboard | |
| Audio Input/Output | 1*RCA/1*RCA | |
| Alarm Input | 16-CH | |
| Alarm Output | 4-CH | |
| General | Compatibility | ONVIF, API |
| Advanced Function | ANR, N+1 Hot Spare | |
| ANPR | Support | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting | |
| Keyboard Control | Milesight Keyboard(MS-K01) | |
| Power Supply | AC 100V∼240V 50Hz∼60Hz | |
| Consumption | ≤15W(Without HDD) | |
| Working Conditions | Temperature: -10℃∼+55℃ / Humidity: 10%∼90% | |
| Dimensions | 440mm(W)X320mm(D)X66.8mm(H), Rack Mountable Chassis (1.5U Standard) | |
| Weight | 4.1Kg | |
| Warranty | 3/5 Years |
